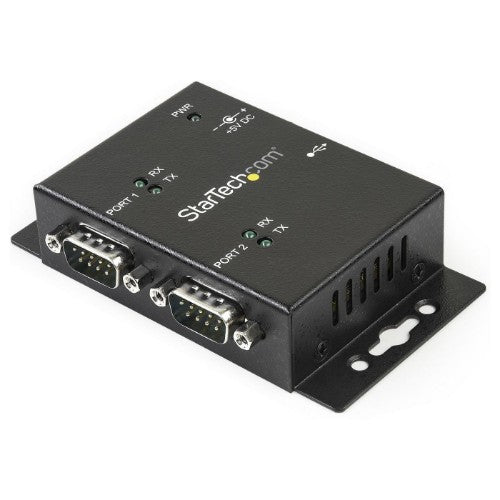

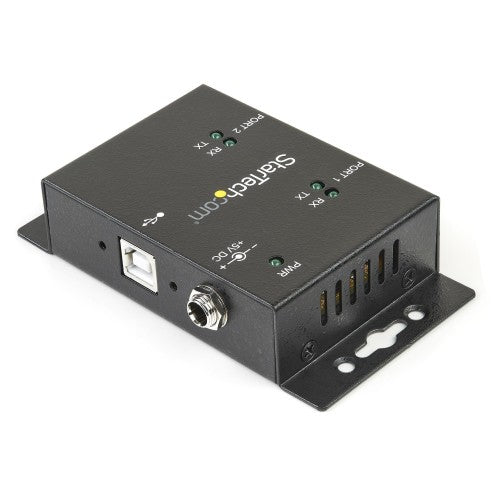

StarTech.com USB to Serial Adapter - 2 Port - Wall Mount - Din Rail Clips - Industrial - COM Port Retention - FTDI - DB9

Description

Add 2 DIN Rail-mountable RS232 Serial ports to any system through USB

The ICUSB2322I 2-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into two RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces

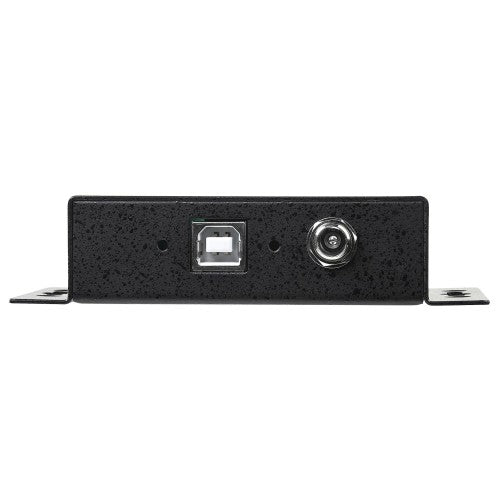

Host interface	USB 2.0 Type-B

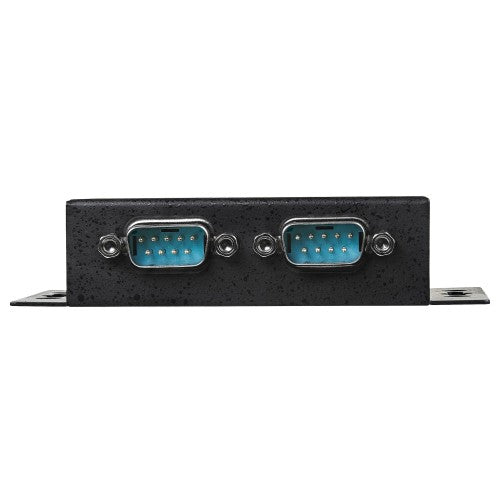

RS-232 ports	2
Hub interfaces	Serial
Ports quantity	2
Features
LED indicators	Activity
Product colour	Black
Housing material	Steel
Host interface	USB 2.0 Type-B
Technical details
Product colour	Black
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
System requirements
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Compatible operating systems	Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x
Other operating systems supported	Windows XP Embedded
Weight & dimensions
Weight	162 g
Width	66 mm
Depth	104 mm
Height	24 mm
Package width	145 mm
Package depth	214 mm
Package height	41 mm
Package weight	400 g
Packaging data
Package width	145 mm
Package depth	214 mm
Package height	41 mm
Package weight	400 g
Quantity per pack	1 pc(s)

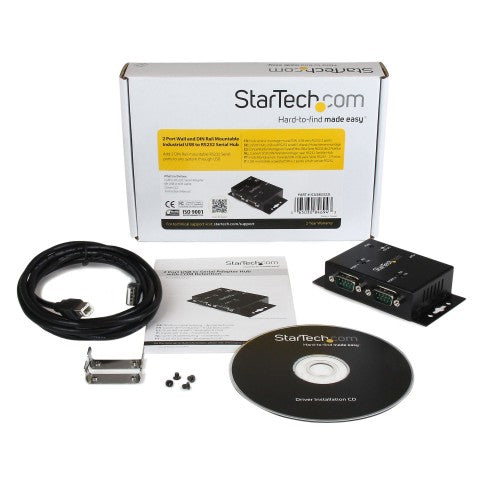

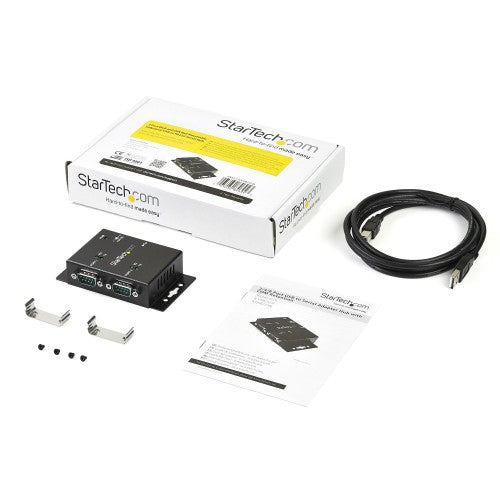

Packaging content
Manual	Yes
Cables included	USB
Drivers included	Yes
DIN rail kit included	Yes
Design
LED indicators	Activity
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Indication
LED indicators	Activity
Performance
Data bits	7, 8
Stop bits	1, 2
FIFO (First In, First Out)	256 B
Baud rate	921.6 Kbit/s
Parity bit	Even, Mark, No, Odd, Space
Harmonized System (HS) code	84719000
Sustainability
Sustainability compliance	Yes
Logistics data
Master (outer) case width	444 mm
Master (outer) case length	525 mm
Master (outer) case height	364 mm
Products per master (outer) case	45 pc(s)
Harmonized System (HS) code	84719000
Other features
Compatible operating systems	Windows 7 (32/64bit), Vista(32/64), XP(32/64), 2000, CE, Windows Server 2008 R2, 2003(32/64), 2000, Mac OS 10.x, Linux 2.4.x/ 2.6.x
Chipset	FTDI - FT232RL
