USB VGA Cat 5 Mini KVM Extender (1280 x 1024@100m)

Key Features

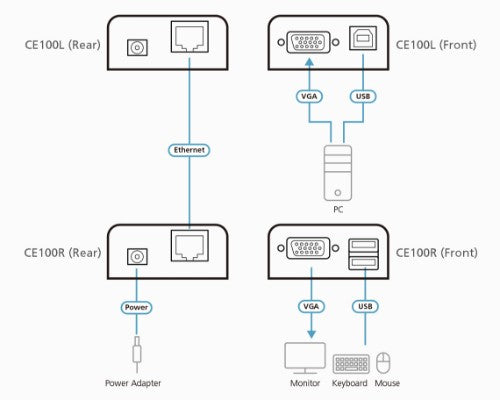

• Extends local PC VGA/keyboard/Mouse to Remote side
• Uses Cat 5e cable to connect the local and remote units
• Easily add or remove computers connected to the installation
• Supports real time DDC communication
• Superior video quality – up to 1920 x 1200
• Allow access to a computer from the remote console up to 100 m distance
• Support manual compensation adjustment for better video quality
• No external power supply needed for local unit
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
• Wall mountable

Description

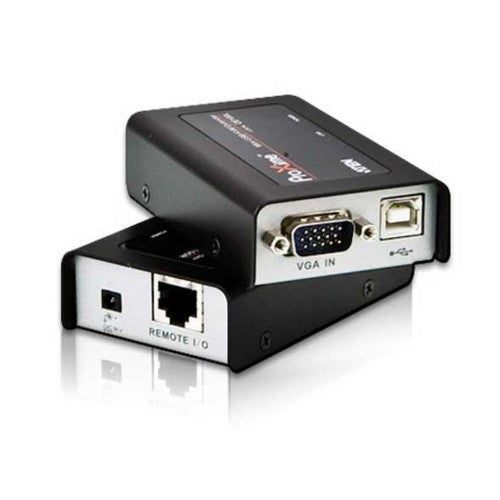

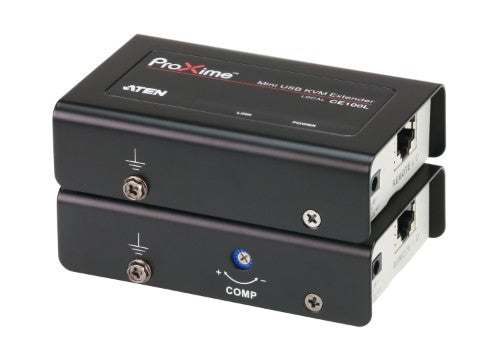

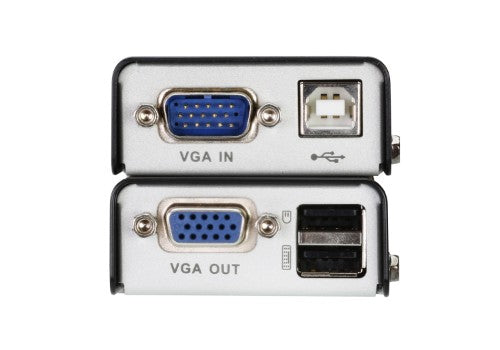

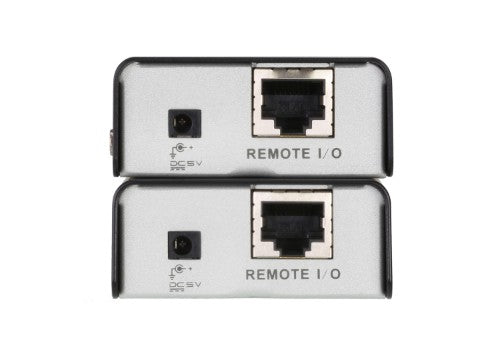

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).

The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.

Specifications

Technical details
Maximum transfer distance	100 m
Product colour	Black
Harmonized System (HS) code	84733020
Ports & interfaces
VGA (D-Sub) ports quantity	2
USB 2.0 ports quantity	3
Microphone in	No
Colour
Product colour	Black
Packaging content
Quick start guide	Yes
Mounting kit	Yes
Cables included	USB, VGA
Logistics data
Harmonized System (HS) code	84733020
