SmartMount Universal Flat Wall Mount for 60" to 98" displays

Key Features

• Universal mount fits displays with mounting patterns up to 1100 x 650mm (43.29" W x 25.59" H)

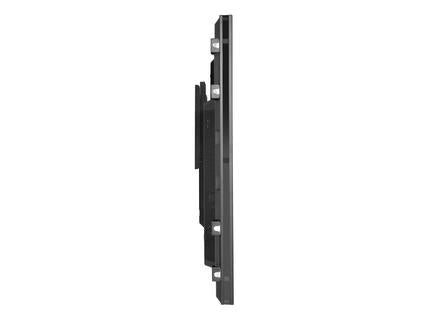

• Low-profile design holds display only 1.73" (44mm) from the wall
• Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
• Laterial display adjustment up to 19.25" (489mm)
• 1" of post-installation vertical adjustment provides flexibility in the installation
• Includes fastener pack with all necessary mounting and display attachment hardware (including M10)
• For mounts requiring theft resistant hardware, installed with security tool (included), please purchase SF680
• For mounts requiring standard hardware, installed with a Philips screwdriver, please purchase SF680P

Description

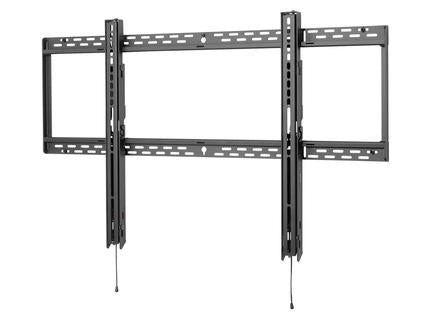

Peerless-AV’s SmartMountTM Universal Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the SF680’s robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount’s built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning to display size of the mounted display.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	172.7 cm (68")
Maximum screen size	2.49 m (98")
Maximum weight capacity	158 kg
Technical details
Product colour	Black
Mounting type	Wall
Quantity per pack	1 pc(s)
Design
Certification	UL/TUV, RoHS
Product colour	Black
Certificates
Certification	UL/TUV, RoHS
Packaging content
Manual	Yes
Weight & dimensions
Width	1162 mm
Height	698 mm
Weight	7.8 kg
Depth (max)	4.4 cm
Packaging data
Package width	1185 mm
Package depth	390 mm
Package height	58 mm
Package weight	9.21 kg
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
