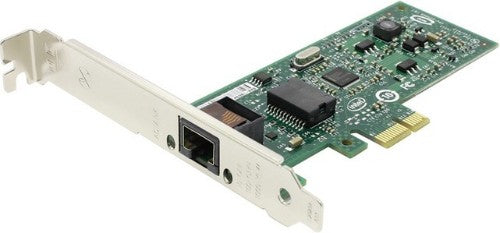

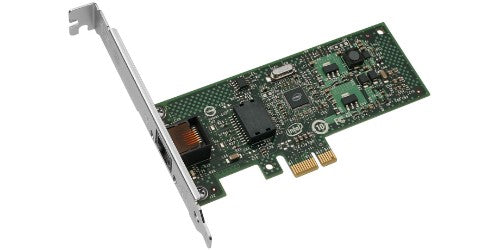

Gigabit CT Desktop Adapter PCI-express - Bulk packed

Description

For PCs with PCI Express (PCIe*) slots, the Intel® Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel® 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.

Specifications

Ports & interfaces
Internal	Yes
PCI version	1.1
Ethernet LAN (RJ-45) ports	1
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Supported data transfer rates	10/100/1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Network
Supported data transfer rates	10/100/1000 Mbit/s
Maximum operating distance	100 m
LAN controller	Intel® 82574L
Maximum data transfer rate	1000 Mbit/s
Technical details
Interface type	PCIe v1.1 (2.5 GT/s)
Compliance industry standards	802.3z
Speed & slot width	2.5 GT/s, x1 Lane
Low halogen options available	No
Harmonized System (HS) code	85176990
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Thermal Design Power (TDP)	1.9 W
Product type	Network Interface Card
Processor family	Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Status	Launched
Product brief URL	http://www.intel.com/Assets/PDF/prodbrief/319831.pdf
Network interface card type	Desktop
Network interface card cable medium	Copper
Market segment	Desktop
Launch date	Q3'08
Last change	63903513
Design
Certification	FCC B, UL, CE
Internal	Yes
Product family	Intel Gigabit desktop adapter
Product series	Intel Gigabit CT
Product codename	Shelter Island
Power
Power consumption (typical)	1.9 W
System requirements
Compatible operating systems	Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Weight & dimensions
Width	55.3 mm
Depth	119.2 mm
Height	120 mm
Performance
Ethernet adapter ARK ID	50395
Speed & slot width	2.5 GT/s, x1 Lane
Certificates
Certification	FCC B, UL, CE
Other features
Compatible operating systems	Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS
Thermal Design Power (TDP)	1.9 W
Product type	Network Interface Card
Processor family	Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE)
Ethernet adapter ARK ID	50395
Interface type	PCIe v1.1 (2.5 GT/s)
Supported data transfer rates	10/100/1000 Mbit/s
Compliance industry standards	802.3z
Cable type	Category-5 up to 100m
Speed & slot width	2.5 GT/s, x1 Lane
Low halogen options available	No
Status	Launched
Product brief URL	http://www.intel.com/Assets/PDF/prodbrief/319831.pdf
Network interface card type	Desktop
Network interface card cable medium	Copper
Market segment	Desktop
Launch date	Q3'08
Last change	63903513
Product family	Intel Gigabit desktop adapter
Product series	Intel Gigabit CT
Product codename	Shelter Island
Harmonized System (HS) code	85176990
Export Control Classification Number (ECCN)	5A991
Commodity Classification Automated Tracking System (CCATS)	NA
Controller type	Intel 82574L
Cabling type	Category-5 up to 100m
Bracket height	Low-Profile (LP) / Full-Height (FH)
Logistics data
Harmonized System (HS) code	85176990
