Description

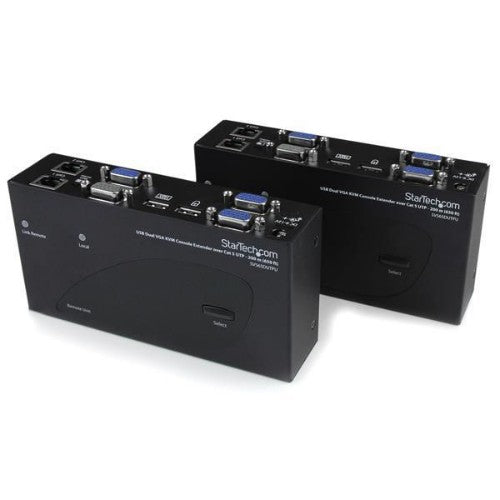

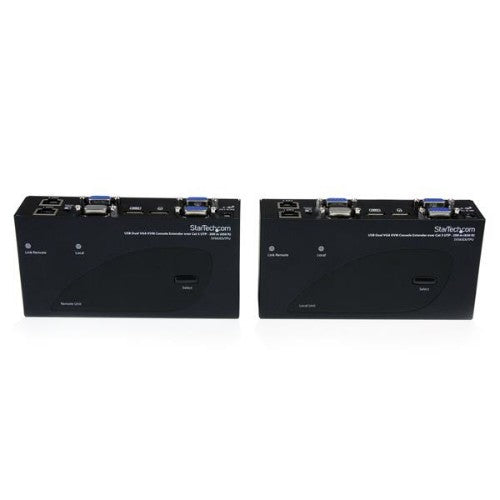

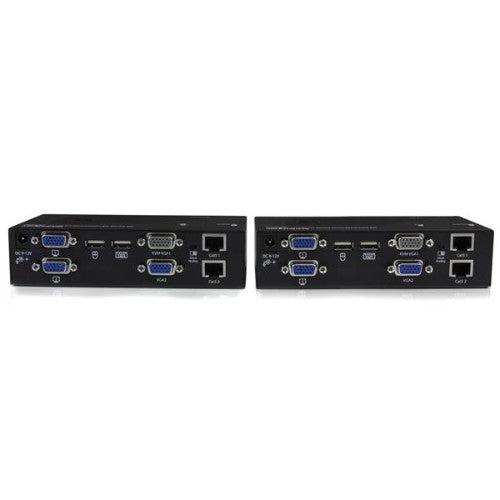

StarTech.com 650 ft/200m USB 2.0 Dual VGA KVM Console Extender over Cat5 UTP -for Dual VGA, USB-enabled PC or KVM Switch - Upto 1920x1200 (SV565DUTPU)
The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
Description
Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locallyThe SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.
The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
Specifications
| Technical details | |
|---|---|
| Maximum transfer distance | 200 m |
| Product colour | Black |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 4 |
| USB 2.0 ports quantity | 12 |
| RJ-45 ports quantity | 2 |
| DC-in jack | Yes |
| Weight & dimensions | |
| Package width | 239 mm |
| Package depth | 367 mm |
| Package height | 75 mm |
| Package weight | 2.25 kg |
| Width | 80 mm |
| Depth | 155 mm |
| Height | 40 mm |
| Weight | 535 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Manual | Yes |
| Cables included | AC, KVM |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
