Universal Flat Screen Wall Mount with Tilt (VESA 600 x 400)

Description

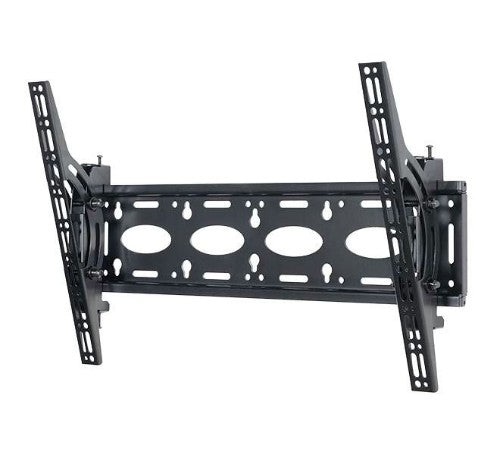

The B-TECH BT-8432 Plasma / LCD Wall mount is designed for screens from 37-inch to 61-inch and weights up to 150 lbs. Will work with VESA and Non-VESA compliant Screens. Quick "Hook On" mounting for easy installation. Mount allows Screen to tilt +/- 15 Degrees with easy knob adjustment. Includes locking bar for secure installation. All mounting hardware included. Will work with all LG 37 to 61 TV

Will work with:
- VESA MIS-F 800,400,8 VESA 800mm x 400mm found on most Philips flat panels.
- VESA 600mm x 400mm.
- VESA 400mm x 200mm.
- VESA 400mm x 100mm.
- VESA 200mm x 200mm.
- VESA 200mm x 100mm.
- VESA 100mm x 100mm.

Mounting Plate:
860mm (33.75-inch)w X 156mm (6.25-inch)h

Hook on Arms:
500mm (19.73-inch)h

Screen mounting:
width:75mm (2.98-inch)min / 835mm (32.75-inch)max
height: 474mm (18.64-inch)

Specifications

Mounting
Mounting type	Wall
Maximum weight capacity	68 kg
Ergonomics
Tilt angle range	-15 - 15°
Technical details
Product colour	Black
Mounting type	Wall
Design
Product colour	Black
Logistics data
Harmonized System (HS) code	83024200
Other features
Mounting type	Wall
Interface width	7.5 cm
Interface height	47.4 cm
Colour	Yes
Screen size compatibility	37/61
