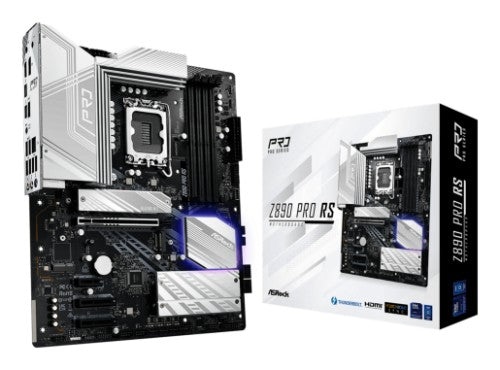

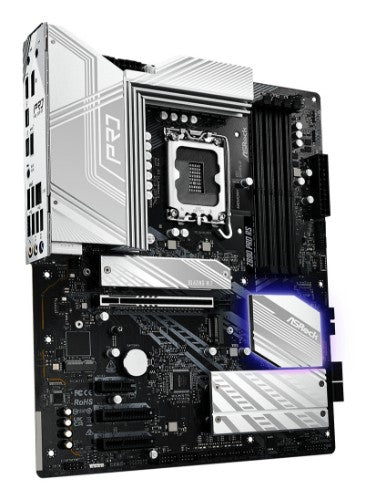

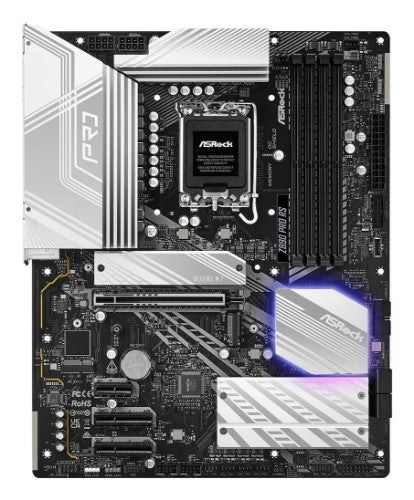

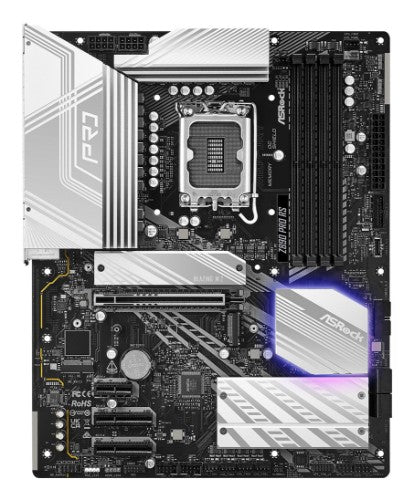

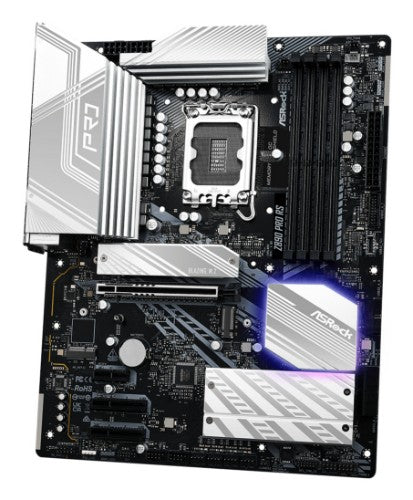

PCIe Gen5 (Graphics, M.2), Intel Z890, Dual Channel DDR5 Memory Technology

Key Features

• Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
• 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 9066+ (OC)
• 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• 2 Thunderbolt™ 4 Type-C
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3
• 1 Blazing M.2 (PCIe Gen5 x4)
• 2 Hyper M.2 (PCIe Gen4 x4)
• 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
• 2 Thunderbolt™ 4 Type-C (Rear)
• 1 USB 3.2 Gen2x2 Type-C (Front)
• 1 USB 3.2 Gen2 Type-A (Rear)
• 6 USB 3.2 Gen1 (2 Rear, 4 Front)
• 8 USB 2.0 (4 Rear, 4 Front)
• Realtek 2.5G LAN
• Supports BIOS Flashback, Memory OC Shield, M.2 Bottom Heatsink

Description

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.

Durable Cap with 1000uF Capacitance
The durable capacitors with 1000uF capacitance offers several benefits:

- Higher Capacitance: Greater charge storage for better support under high loads.
- Lower Ripple: Reduced power output fluctuations, improving quality.
- More Stable Output Current: Stable power supply, minimizing voltage impacts.
- Better Performance & System Stability: Increased reliability and consistent performance.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Specifications

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Supported processor sockets	LGA 1851
Motherboard form factor	ATX
Component for	PC
Compliance certificates	CE, Federal Communications Commission (FCC)
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
RAID levels	0, 1, 5, 10
Supported processor sockets	LGA 1851
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Expansion card interfaces
Audio connector	Yes
Processor
Processor manufacturer	Intel
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	9066 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	4
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	8
RAID support	Yes
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Audio connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	5
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
USB 3.2 Gen 2x2 connectors	1
Number of CPU fan connectors	2

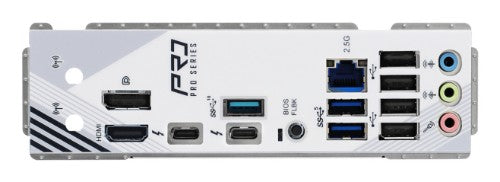

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPort version	1.4
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	2
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Dragon RTL8125BG
Ethernet interface type	2.5 Gigabit Ethernet
Features
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Supported processor sockets	LGA 1851
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC897
Expansion slots
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
PCI Express x4 (Gen 4.x) slots	2
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Software
Windows operating systems supported	Windows 11 x64
Weight & dimensions
Width	305 mm
Depth	244 mm
Packaging content
Cables included	SATA
Screws included	Yes
M.2 standoff included	Yes
Other features
PCI Express x1 (Gen 4.x) slots	1
