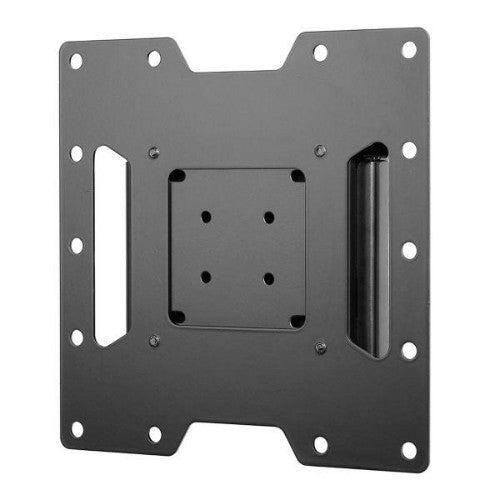

Smartmount Flat Wall Mount For 22" To 43" Displays

Key Features

• Accommodates 75, 100, 200 x 100, or 200 x 200mm VESA mounting patterns
• Slim design positions the display only 1.02" (26mm) from the wall
• Display adaptor simply slides into the wallplate for quick and easy installation
• Includes all necessary wall and display attachment hardware
• Integrated security options available
• For mounts requiring theft resistant hardware, installed with security tool(included), please purchase SF632
• Design is UL listed and tested to fourtimes stated load capacity
• For mounts requiring standard hardware, installed with a Philips screwdriver, please purchase SF632P

Description

The SmartMountTM Flat Wall Mount series offers the most versatile installation features and mounting options. The SF632(P) models low-profile design offers the sleek, aesthetically pleasing look to fit into any décor. Security screws provided in the SF632 model deter tampering and theft. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick, simple, and secure installation.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	55.9 cm (22")
Panel mounting interface	75 x 75,100 x 100,200 x 100,200 x 200
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Maximum screen size	109.2 cm (43")
Maximum weight capacity	52 kg
Technical details
Product colour	Black
Mounting type	Wall
Design
Certification	UL, RoHS
Product colour	Black
Certificates
Certification	UL, RoHS
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	222 mm
Height	222 mm
Weight	1.29 kg
Depth (max)	2.6 cm
Packaging data
Package width	289 mm
Package depth	267 mm
Package height	91 mm
Package weight	1.7 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
Colour	No
Screen size compatibility	558.8 - 1016 mm (22 - 40")
