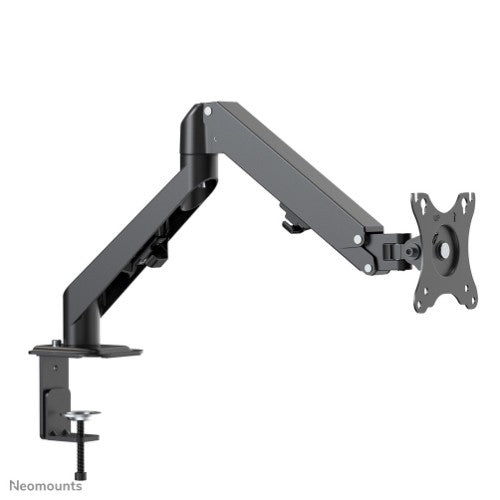

Neomounts DS70-700BL1 Single monitor arm - 17-27" - 2-7 kg - gas spring - black

Description

The Neomounts DS70-700BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (15,2-40,2 cm) and depth adjustment (0-48 cm), to create the perfect working position.

The DS70-700BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates.

Specifications

Mounting
Maximum weight capacity (per display)	7 kg
Desk thickness (min)	1 cm
Desk thickness (max)	8 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp
Maximum weight capacity	7 kg
Maximum screen size	68.6 cm (27")
Maximum weight capacity (per curved/ultra-wide display)	7 kg
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	0 - 480 mm
Height adjustment	Yes
Height adjustment range	152 - 402 mm
Pivot angle	-180 - 180°
Swivel angle range	-90 - 90°
Tilt angle range	-45 - 90°
Angle of rotation	360°
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Housing material	Steel
Orientation	Landscape/Portrait
Technical details
Mounting type	Desk
Minimum weight	2 kg
Product colour	Black
Cable management	Yes
Weight & dimensions
Width	117 mm
Depth	542 mm
Height	566 mm
Weight	2.1 kg
Package width	405 mm
Package depth	270 mm
Package height	90 mm
Package weight	2.5 kg
Package net weight	2.5 kg
Packaging data
Package width	405 mm
Package depth	270 mm
Package height	90 mm
Package weight	2.5 kg
Package net weight	2.5 kg
Quantity per pack	1 pc(s)
Other features
Minimum weight	2 kg
Mounting type	Desk
Mounting	Clamp
Country of origin	China
Logistics data
Master (outer) case width	405 mm
Master (outer) case length	270 mm
Master (outer) case height	90 mm
Master (outer) case gross weight	2.5 kg
Products per master (outer) case	1 pc(s)
Country of origin	China
Products per pallet (EU)	135 pc(s)
Master (outer) case net weight	2.1 kg
Harmonized System (HS) code	7326909890
