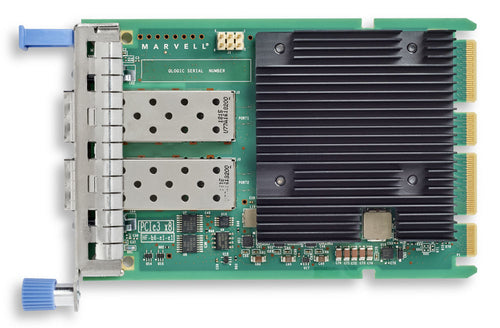

ThinkSystem Marvell QL41232 10/25GbE SFP28 2-Port OCP Ethernet Adapter

Description

The ThinkSystem Marvell QL41232 10/25GbE SFP28 Ethernet Adapters are based on eighth-generation technology from Marvell and feature Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. They are suitable for existing 10Gb customers who want to maintain 10Gb network support and want the investment protection of supporting 25GbE network speeds, but don't need FCoE or iSCSI support.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Fiber ports quantity	2
Fiber optic connector	SFP28
Host interface	PCI Express
Connectivity technology	Wired
Technical details
Product colour	Green, Metallic
Wake-on-LAN ready	Yes
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Network
Ethernet interface type	10 Gigabit Ethernet, 25 Gigabit Ethernet
Networking standards	IEEE 1588, IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1as, IEEE 802.3by, IEEE 802.3x
Wake-on-LAN ready	Yes
Ethernet LAN data rates	10000,25000 Mbit/s
Design
Product colour	Green, Metallic
Internal	Yes
Form factor	OCP 3.0
Component for	Server
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	76 mm
Depth	115 mm
Performance
Wake-on-LAN ready	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Other features
Form factor	OCP 3.0
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
