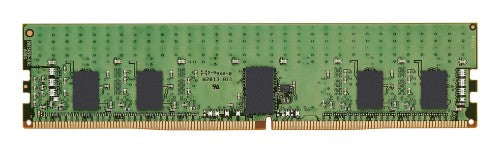

16GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 16Gbit Hynix D

Description

Kingston's KSM32RS8/16HD is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Specifications

Power
Memory voltage	1.2 V
Design
Product colour	Green
Technical details
Product colour	Green
Memory
Buffered memory type	Registered (buffered)
Memory layout (modules x size)	1 x 16 GB
Internal memory	16 GB
Component for	Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Memory ranking	1
ECC	Yes
Internal memory type	DDR4
Features
Buffered memory type	Registered (buffered)
Product colour	Green
Memory layout (modules x size)	1 x 16 GB
Internal memory	16 GB
Component for	Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Memory ranking	1
ECC	Yes
Internal memory type	DDR4
Memory data transfer rate	3200 MT/s
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C
