All-in-One Control Box, 200-240V AC, 50 Hz, 433.92 MHz, 10 mW, White

Description

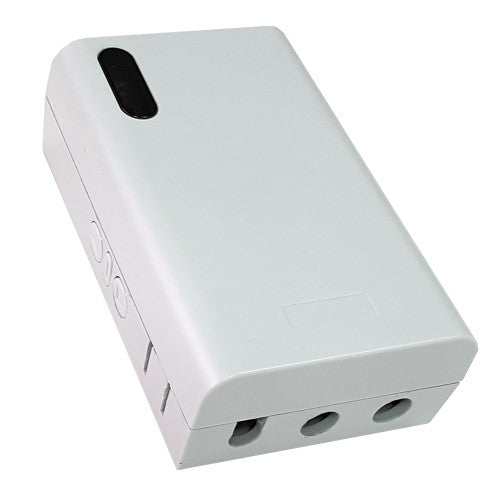

The Projecta All-in-One Control Box offers multiple operation options in a single box.
This new accessory can be combined with motorized projection screens without a built-in RF receiver and offers the following options:
- Dry-contact (relay)
- RF (radiofrequency) control
- IR (infrared) control
- Manual Switch on the box
- 12 volt trigger

Relay (dry-contact)
Use the relay dry contact points in the control box to connect the screen to be operated with a third party control system. A control system includes the projection screen into the full room AV control.

RF (radiofrequency) control
Control the projection screen via a radio frequency remote control. The remote control unit operates on frequency 433.92 MHz. RF has an effective range up to 30 meters, depending on the local environment.

IR (infrared)
Control the projection screen via an infrared remote control. For infrared control a direct line of sight with the control box is needed. IR can be a solution for environments with restricted RF access. Infrared has an effective range up to 8 meters.

Manual Switch
On the side of the control box you can find three buttons to control the projection screen directly. This additional control method function as a back-up to ensure the screen can still be operated even when connected control options fail.

12 volt DC trigger
Connect the 12 volt trigger option to any 12 volt output to trigger the projection screen. The 12 volt can be from a projector 12 volt trigger output or from an AV control system.

Specifications

Design
Interface	IR Wireless/Wired
Remote control proper use	Projection screen
Product colour	White
Buttons quantity	3
Backlight buttons	No
Input type	Press buttons
Display
Built-in display	No
Performance
Transmitter type	Infrared (IR)
Input frequency	50 Hz
Frequency band	0.433 GHz
LED indicators	Yes
Operating frequency	0.038 MHz
Battery
Rechargeable	No
Technical details
Input frequency	50 Hz
Interface	IR Wireless/Wired
Remote control proper use	Projection screen
Product colour	White
Frequency band	0.433 GHz
Harmonized System (HS) code	85299097
Buttons
Buttons quantity	3
Backlight buttons	No
Input type	Press buttons
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Other features
Operating frequency	0.038 MHz
Logistics data
Harmonized System (HS) code	85299097
