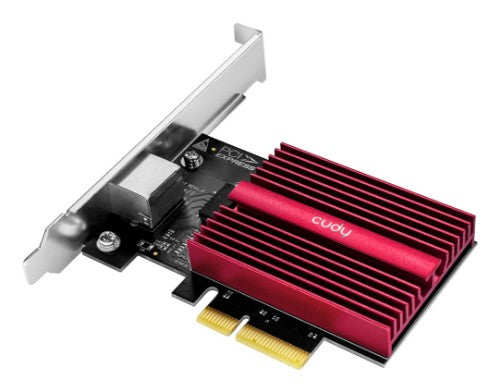

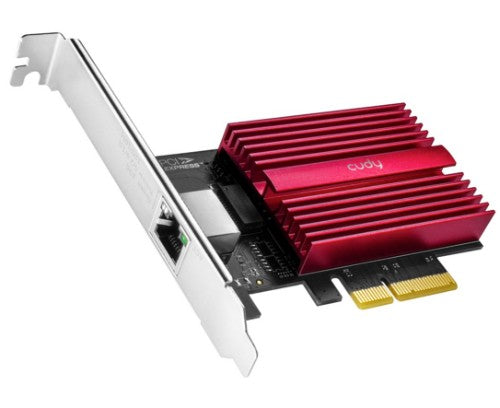

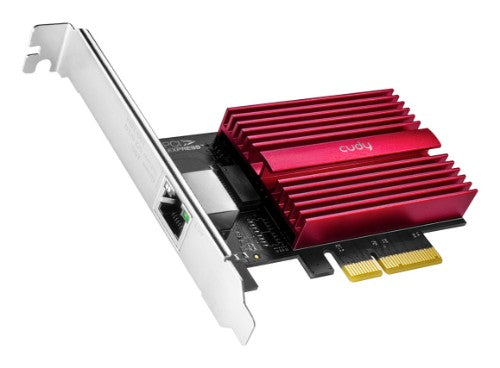

10 Gbps PCI-E Ethernet Adapter

Key Features

• 10 Gbps Ethernet Port
• 10G/5G/2.5G/1G/100M/10M
• Wake on LAN, Flow Control
• PC, Servers, NAS, etc
• Windows, Linux etc

Description

Blazing-Fast 10 Gbps Network
Download at top speed, host your mega-server, and edit media files on NAS smoothly with the blazing-fast 10 Gbps networking. The PE10G supports 6-negotiation-speed—10G/5G/2.5G/1G/100M/10M.

Free CAT 6 Cable Included

Requires a PCI-E x4/x8/x16 Slot
Advanced Features

Saves Power Automatically
EEE (Energy-Efficient Energy) feature automatically set adapter into a low-power idle state when there is little or no data traffic.

Flow Control
Prevents packet loss and data drops when transmission rates reach 10 Gbps, crucial for maintaining reliability in server operations and surveillance systems.

Wake on LAN
Allows user to wake up their PC or server remotely via network with Wake on LAN.

Standard/Low-Profile Bracket
Suitable for standard towered PC, low-profile server, and rack-mounted server installation.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
USB ports quantity	0
Ethernet LAN (RJ-45) ports	1
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Technical details
Product colour	Red
Country of origin	China
Products per shipping (inner) case	20 pc(s)
Warranty period	1 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC)
Network
Ethernet interface type	10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet
Ethernet LAN	Yes
Networking standards	IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Maximum data transfer rate	10000 Mbit/s
Mobile network generation	Not supported
Design
Product colour	Red
Internal	Yes
LED indicators	Activity, Link, Speed
Country of origin	China
Component for	PC
Software
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	No
Linux operating systems supported	Yes
Other operating systems supported	Linux
Indication
LED indicators	Activity, Link, Speed
System requirements
Server operating systems supported	Windows Server 2022
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	No
Linux operating systems supported	Yes
Other operating systems supported	Linux
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	100 mm
Depth	66 mm
Height	15 mm
Weight	84.5 g
Package width	220 mm
Package depth	144 mm
Package height	35 mm
Package weight	247 g
Packaging data
AC adapter included	No
Package width	220 mm
Package depth	144 mm
Package height	35 mm
Package weight	247 g
Mounting brackets included	Yes
Quick installation guide	Yes
Quick start guide	Yes
Manual	Yes
Cables included	LAN (RJ-45)
Packaging content
Mounting brackets included	Yes
Quick installation guide	Yes
Manual	Yes
Cables included	LAN (RJ-45)
Resource CD	No
Bluetooth header cable	No

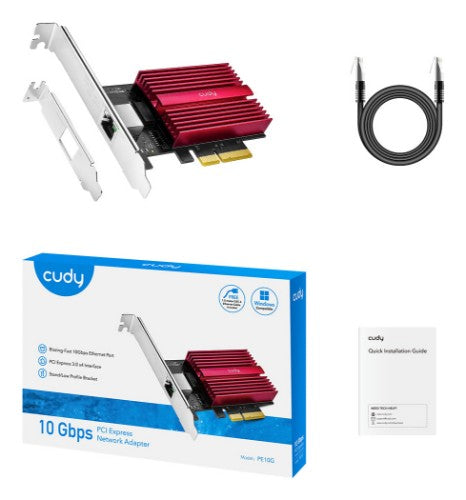

Packaging content	PE10G Low-Profile Bracket Installation Guide Ethernet Cable
AC adapter included	No
Quick start guide	Yes
Performance
Server operating systems supported	Windows Server 2022
Windows operating systems supported	Windows 10, Windows 11
Mac operating systems supported	No
Linux operating systems supported	Yes
Other operating systems supported	Linux
Other features
Manual	Yes
Quick start guide	Yes
Country of origin	China
Logistics data
Products per shipping (inner) case	20 pc(s)
