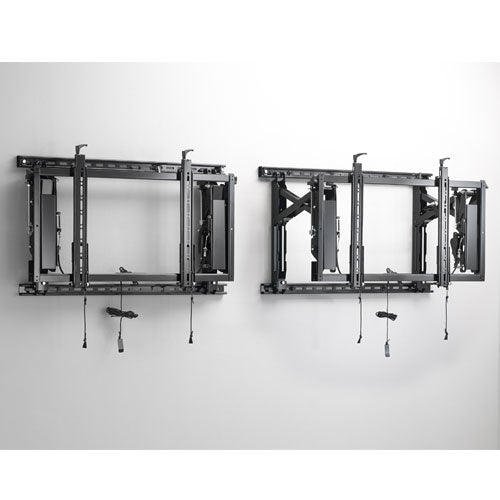

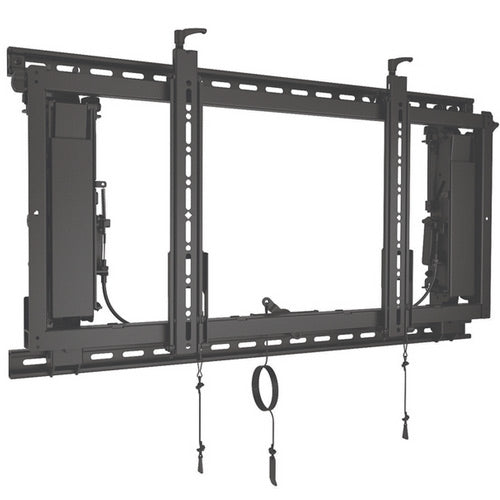

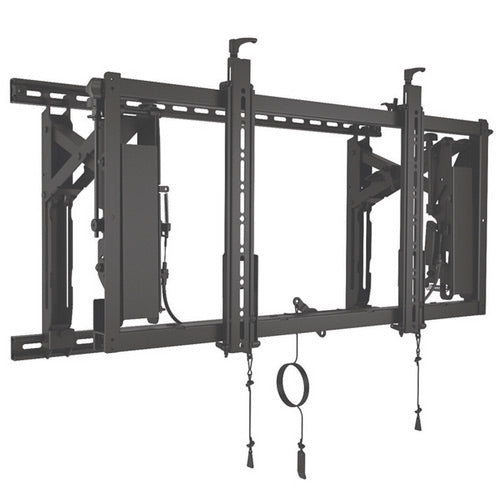

ConnexSys Video Wall Landscape Mounting System without Rails

Description

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.

The LVSXU ConnexSys Video Wall system landscape mount ships without rails. Installers can source strut locally to hang multiple mounts to one rail and reduce installation time.

SPEED

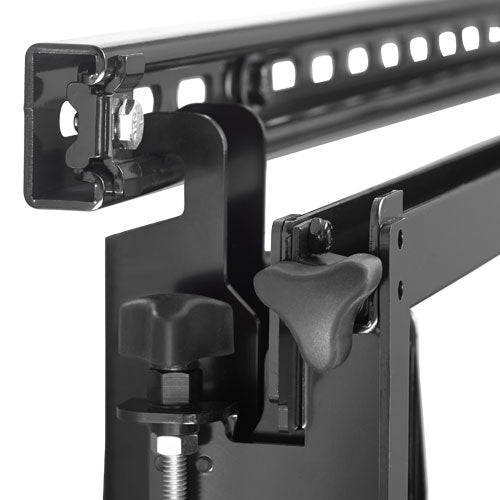

- Hang units on a single strut channel for quick row leveling
- No need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1-5/8" sizes of channel strut
- Reduces installation time - especially for XL and recessed configurations
- Tool-free ClickConnect™ latching secures displays
- PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount

MISCELLANEOUS
- Security - pad lock 1/4" shank diameter
- Safety tested
- Universal interface
- Each mount comes out of the box with adjustments set in the exact same position

RIGIDITY

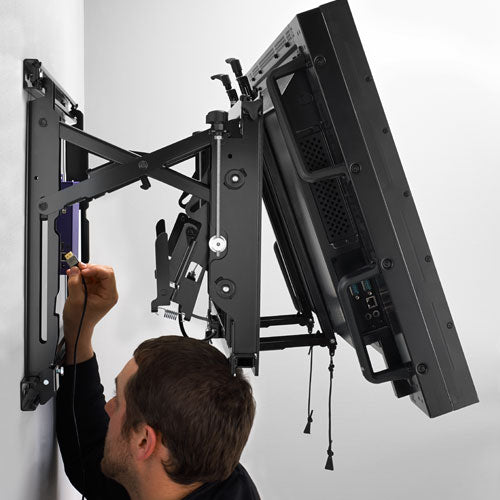

- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

Specifications

Mounting
Mounting type	Wall
Minimum screen size	106.7 cm (42")
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	700 x 400 mm
Maximum screen size	2.03 m (80")
Maximum weight capacity	68 kg
Ergonomics
Height adjustment	Yes
Tilt angle range	-2.5 - 4°
Technical details
Product colour	Black
Mounting type	Wall
Design
Product colour	Black
Weight & dimensions
Width	903 mm
Depth	102 mm
Height	554 mm
Packaging data
Package weight	19 kg
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
