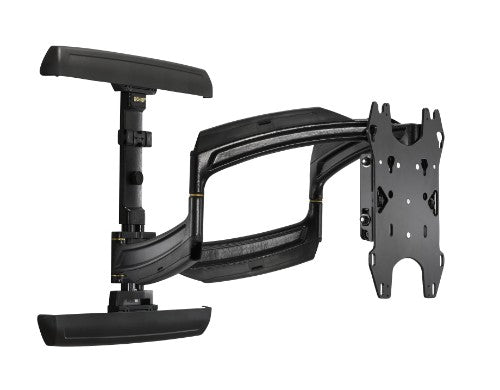

Large THINSTALL Dual Swing Arm Wall Display Mount - 25" Extension

Description

A lightweight, low-profile full-motion wall display mount for TVs 37-58". Easily installs with one person by mounting the top rail and sliding on the assembl.

- Ultra Low Profile Sleek design collapses to 1.5" (38 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma
- Extends up to 25" (635 mm) Full extension maximizes viewing potential
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Specifications

Mounting
Mounting type	Wall
Minimum screen size	94 cm (37")
Number of displays supported	1
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	800 x 400 mm
Maximum screen size	147.3 cm (58")
Maximum weight capacity	56.7 kg
Ergonomics
Cable management	Yes
Tilt angle range	-15 - 15°
Pivot angle	-90 - 90°
Technical details
Cable management	Yes
Pivot angle	-90 - 90°
Number of displays supported	1
Product colour	Black
Mounting type	Wall
Adjustable	Yes
Design
Cable management	Yes
Certification	UL, OSHPD
Product colour	Black
Certificates
Certification	UL, OSHPD
Weight & dimensions
Width	749 mm
Depth	38 mm
Height	527 mm
Packaging data
Package weight	24.9 kg
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Wall
Adjustable	Yes
