Intel Core Ultra 9 275HX (36MB Cache), 32GB DDR5-SDRAM, 1000GB SSD, Intel Graphics, NVIDIA GeForce RTX 5070 Ti (12GB GDDR7), LAN, WLAN, Bluetooth, Windows 11 Home 64-bit

Key Features

• Windows 11 Home 64-bit
• Intel Core Ultra 9 275HX (36MB Cache)
• NVIDIA GeForce RTX 5070 Ti (12GB GDDR7)
• 32GB (6400MHz) DDR5-SDRAM (2 x 16) & 1000GB SSD

Description

Gaming Redefined
Power Meets Precision

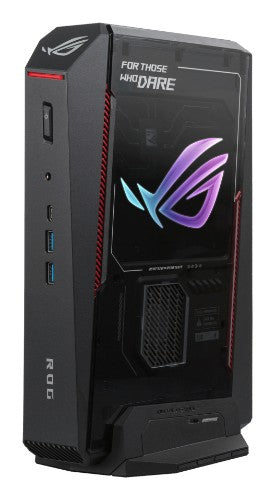

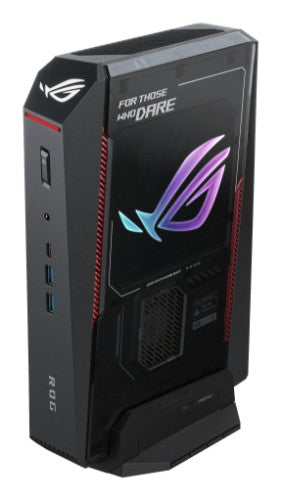

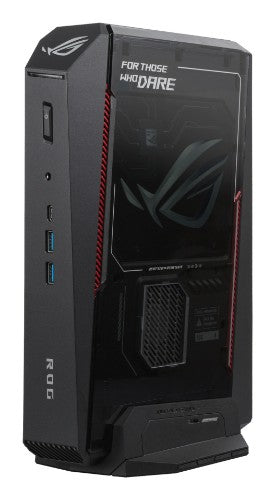

Unlock new gaming horizons with ROG NUC (2025), powered by the Intel® Core™ Ultra processors (Series 2) ARL-HX and up to NVIDIA® GeForce RTX™ 5080 Laptop GPU. Equipped with triple fan cooling and support for four 4K displays, this compact powerhouse delivers unprecedented performance.

Specifications

Processor
Processor generation	Intel Core Ultra (Series 2)
Processor cache	36 MB
Processor model	275HX
Processor manufacturer	Intel
Processor boost frequency	5.4 GHz
Processor threads	24
Processor cores	24
Processor family	Intel Core Ultra 9
Performance cores	8
Efficient cores	16
Performance-core base frequency	2.7 GHz
Efficient-core base frequency	2.1 GHz
Processor base power	55 W
Maximum turbo power	160 W
Efficient-core Max Turbo Frequency	4.6 GHz
Performance-core Max Turbo Frequency	5.4 GHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	36 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Memory
Memory layout (slots x size)	2 x 16 GB
Internal memory	32 GB
Maximum internal memory	96 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	6400 MHz
Storage
Storage media	SSD
Optical drive type	No
SSD interface	PCI Express 4.0
SSD capacity	1 TB
Number of SSDs installed	1
Total storage capacity	1 TB
SSD form factor	M.2
Total SSDs capacity	1 TB
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	12 GB
On-board graphics card family	Intel® Graphics
On-board graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 5070 Ti
Discrete graphics memory type	GDDR7
On-board graphics card model	Intel® Graphics
Number of discrete graphics cards	1
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Performance
Market positioning	Gaming
Product type	Mini PC
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.4
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Top Wi-Fi standard	Wi-Fi 7 (802.11be)

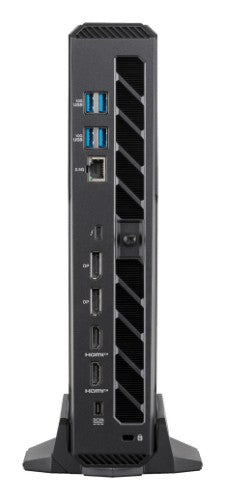

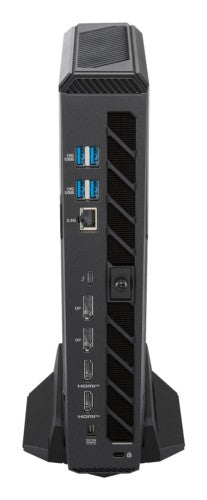

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.1
USB 2.0 ports quantity	0
HDMI ports quantity	2
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
DC-in jack	Yes
DisplayPort version	2.1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	1
Technical details
Cable lock slot type	Kensington
Product type	Mini PC
Product colour	Black
Chassis type	USFF
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Design
Volume	2.5 L
Cable lock slot type	Kensington
Product colour	Black
Chassis type	USFF
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 Home
Display
Display included	No
Weight & dimensions
Volume	2.5 L
Width	282.4 mm
Depth	187.7 mm
Height	56.5 mm
Weight	3.12 kg
Packaging content
Display included	No
Other features
On-board graphics card	Yes
Processor manufacturer	Intel
