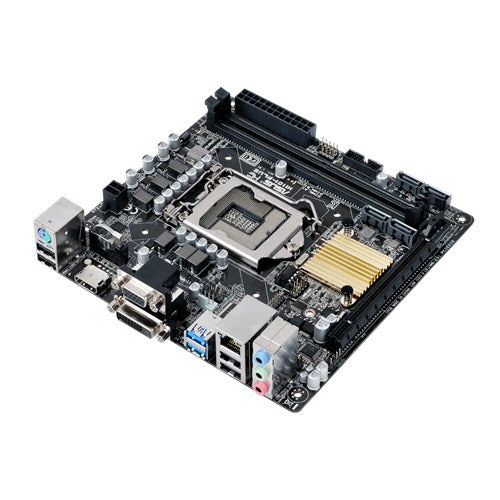

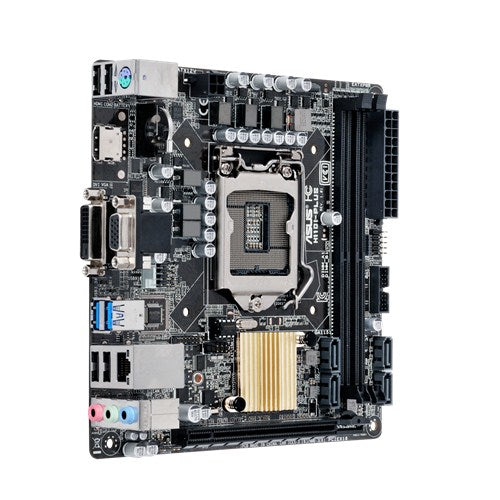

Intel H110, 2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, 128 Mb Flash ROM, UEFI AMI BIOS, mini-ITX

Description

Dependable Stability

Advanced Hardware Safeguards

Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection
World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DRAM Overcurrent Protection
Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.

DIGI+ VRM
Precision control for stable power

ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.

Superb Performance
DDR4 Support
Make your memory go faster

With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.

Media-acclaimed UEFI BIOS

The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.

EZ Flash 3

Update the latest BIOS via the internet, and from within the BIOS.

S.M.A.R.T

Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.

Q-Fan Control

You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!

My Favorites

Quickly find tuning options and add preferred tools to the list.

EZ Mode

- Intuitive Graphical Fan Control:

Fine-tune individual fans simply by dragging a curve with the mouse.

- EZ XMP:

Improve your DRAM performance with a click.

- SATA Information:

View SATA port details for easy device recognition.

- Fast Clock Adjustment:

Use mouse controls to change the time and date.

Advanced Mode

- Last Modified Log:

Track last change and save preferred profiles onto a USB drive.

- SATA Port Renaming:

Rename SATA ports for easy identification.

Ultrafast Transfer Speed

Instant front-panel USB 3.0 Experience

We've put USB 3.0 right where you need it — two super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!

Easy PC DIY

Q-DIMM
Easy memory removal

Even if you work with a smaller case, just push down on the one-sided clip and push or pull RAM modules in or out – couldn't be simpler!

Optimized Cooling

Fan Xpert

Dedicated CPU and case fan controls

Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with our 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!

One-Stop Control

AI Suite 3
One-stop access to innovative ASUS features

ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.

Intel CPU and chipset features

Intel® H110 Chipset

Intel® chipset is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7/Core i5/Core i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to four USB 3.0 ports for up to ten times faster transfer than USB 2.0. Moreover, Intel® H110 chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.

Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors

This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, dual channel (2 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.

Intel® SBB support

Intel® SBB (Small Business Basics) is an entry software solution that provides simple, out-of-the-box value for small business. Intel® SBB requires MEI drivers (AMT host software kit) be installed.

Specifications

Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel® H110
Motherboard form factor	mini ITX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Intel Extreme Memory Profile (XMP)	Yes
Windows operating systems supported	Yes
Motherboard chipset family	Intel
Motherboard chipset	Intel® H110
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Processor
Processor manufacturer	Intel
Intel Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
Compatible processor series	Intel® Celeron®, Intel® Pentium®
Processor socket	LGA 1151 (Socket H4)
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Supported memory clock speeds	2133 MHz
Maximum internal memory	32 GB
Maximum UDIMM memory	32 GB
Unbuffered memory	Yes
ECC сompatibility	Non-ECC
Storage controllers
Supported storage drive interfaces	SATA III
Internal I/O
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	SATA III
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Number of COM connectors	1
Number of chassis fan connectors	1
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes

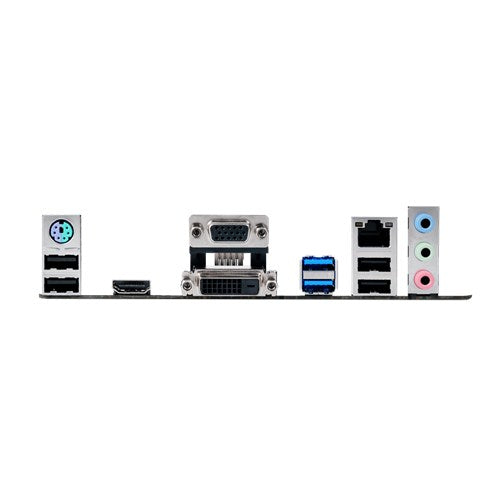

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
eSATA ports quantity	0
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	1
Microphone in	Yes
Firewire (IEEE 1394) ports	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	1
Network
Ethernet LAN	Yes
LAN controller	Realtek RTL8111H
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Features
Power source type	ATX
Windows operating systems supported	Yes
Motherboard chipset family	Intel
Motherboard chipset	Intel® H110
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Expansion slots
PCI Express x16 (Gen 3.x) slots	1
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	16 Mbit
ACPI version	5.0
Power
Power source type	ATX
Processor special features
Intel Extreme Memory Profile (XMP)	Yes
Software
Windows operating systems supported	Yes
Weight & dimensions
Width	170 mm
Depth	170 mm

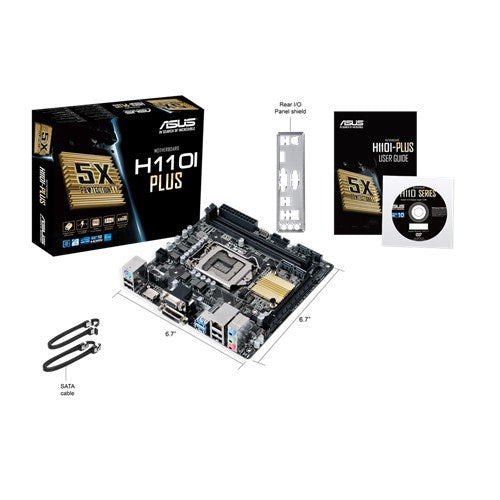

Packaging content
Cables included	SATA
Other features
Maximum UDIMM memory	32 GB
