ROG STRIX B850-G GAMING WIFI

Description

ASUS ROG Strix B850-G Gaming WiFi AMD mATX motherboard, 14+2+1 power stages, DDR5 slots, four M.2 slots, PCIe® 5.0, WiFi 7, USB 20Gbps Type-C® and Aura Sync RGB

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	2
Number of chassis fan connectors	3
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Number of CPU fan connectors	1
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Parallel processing technology support	Not supported
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
RAID levels	0, 1, 5, 10
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor socket	Socket AM5
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Maximum internal memory	256 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	8000 MHz
ECC сompatibility	ECC & Non-ECC
Storage controllers
Number of HDDs supported	2
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Number of storage drives supported	6
RAID support	Yes
Graphics
Parallel processing technology support	Not supported

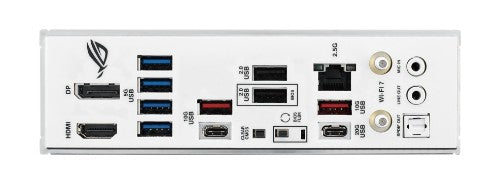

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	2
WiFi-AP antenna jack	2
VGA (D-Sub) ports quantity	0
S/PDIF out port	Yes
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Features
Windows operating systems supported	Windows 11
Motherboard chipset family	AMD
Motherboard chipset	AMD B850
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Product colour	White
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 (Gen 5.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button	Yes
Packaging data
Package width	285 mm
Package depth	277 mm
Package height	72.5 mm
Software
Windows operating systems supported	Windows 11
Weight & dimensions
Package width	285 mm
Package depth	277 mm
Package height	72.5 mm
Width	244 mm
Depth	244 mm
Packaging content
Antenna included	Yes
Other features
Package width	285 mm
Package depth	277 mm
Package height	72.5 mm
