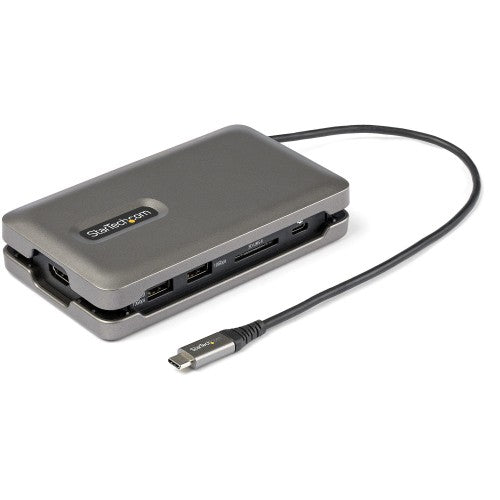

StarTech.com USB C Multiport Adapter - USB C to 4K 60Hz HDMI 2.0, 2pt 10Gbps USB Hub, 100W PD Passthrough, GbE, SD/MicroSD, USB Type-C Mini Dock, 10" Cable, Alternative to DKT30CSDHPD (DKT31CSDHPD3)

Description

USB-C Multiport Adapter | HDMI Video | 100W PD Pass-Through | 2-Port USB Hub (10Gbps) | SD/MicroSD Card Reader

This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI video output, two USB 3.1 Gen 2 Type-A (10Gbps) ports, an SD card reader and a Gigabit Ethernet port all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 10-inch (25 cm) host cable for an extended reach to offer more set up flexibility.

USB 3.1 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2x1 (10Gbps).

Enhance Productivity

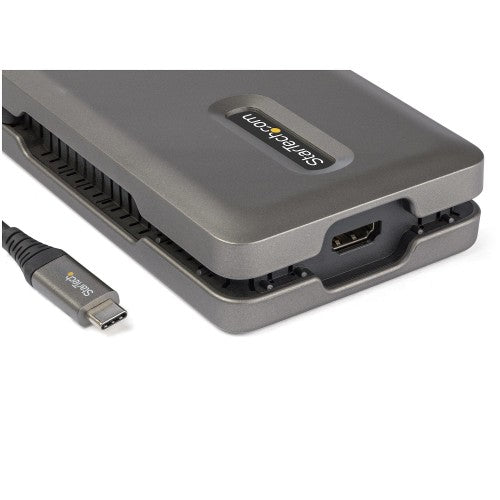

The portable docking station connects your laptop to a 4K 60Hz HDMI monitor (4096 x 2160p) to create a powerful workstation. It can also connect to an ultrawide monitor.

DP Alt Mode Required

Maximum Resolution

DP 1.2 Alternate Mode

Up to 4K 30Hz

DP 1.4 Alternate Mode

Up to 4K 60Hz

Connect Your Devices

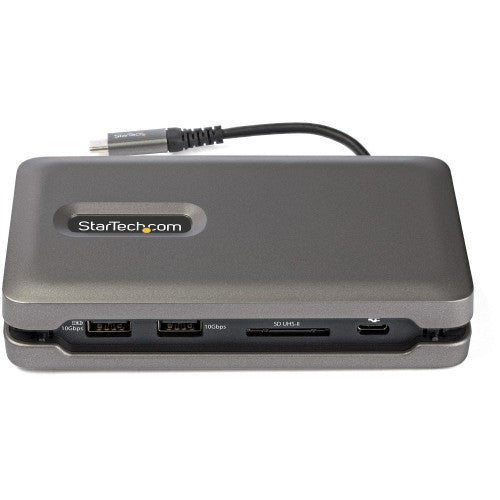

The USB-C to USB 3.1 Gen 2 hub gives you two USB-A (10Gbps) ports to connect your USB devices.

Easy Portability

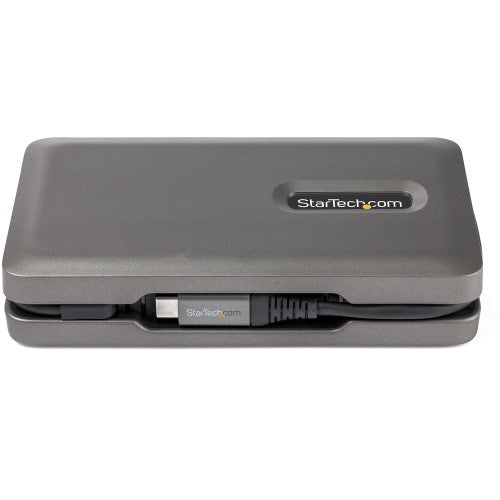

For mobile use, the USB-C adapter can operate with bus-power alone, or with a USB-C power adapter for laptop and BC 1.2 peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.

Built-In SD Card Reader

Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.

Charge Your Laptop and Peripherals

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

Reliable Network Connectivity

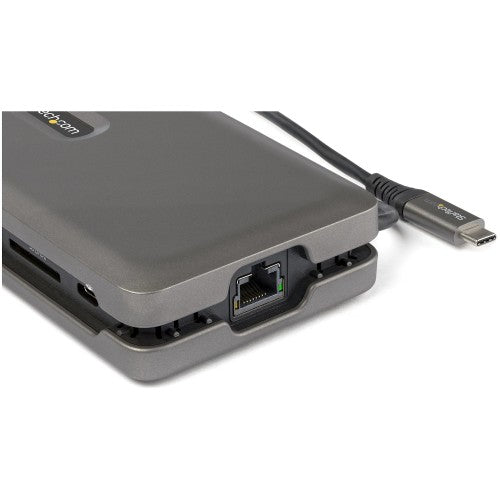

The Gigabit Ethernet port ensures reliable wired network access with support for PXE Boot and WoL.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The StarTech.com Advantage

Specifications

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Microphone in	No
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
DisplayPort version	1.4
Network
Full duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
UASP support	Yes
Maximum digital resolution	3840 x 2160 pixels
Full duplex	Yes
Number of displays supported	1
Product colour	Grey
Card reader integrated	Yes
Data transfer rate	10 Gbit/s
Compatible memory cards	MMC, SD
HD type	4K Ultra HD
Housing material	Plastic
Maximum refresh rate	60 Hz
High Dynamic Range 10 (HDR10)	Yes
Technical details
Product colour	Grey
Data transfer rate	10 Gbit/s
Cable length	0.25 m
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Products per master (outer) case	20 pc(s)
Master (outer) case width	420 mm
Master (outer) case length	318 mm
Master (outer) case height	227 mm
Storage
Card reader integrated	Yes
Compatible memory cards	MMC, SD
Power
Power consumption (typical)	15 W
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android 10.0, Android 11.0, Android 9.0, iPadOS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	150 g
Width	142 mm
Depth	82 mm
Height	29 mm
Package weight	270 g
Package width	210 mm
Package depth	144 mm
Package height	40 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colour	Grey
Packaging data
Package weight	270 g
Package width	210 mm
Package depth	144 mm
Package height	40 mm
Packaging content
Quick start guide	Yes
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	420 mm
Master (outer) case length	318 mm
Master (outer) case height	227 mm
Harmonized System (HS) code	84733020
Other features
Chipset	Genesys Logic - GL9510, Genesys Logic - GL3590, Genesys Logic - GL3523, Realek - RTL8153VC, Parade - PS186
Cable length	0.25 m
