£58.14
Spread the cost over 3, 6 or 12 months with orders over £50.
Spend £91.86 more for free next working day delivery (currently £5.99)

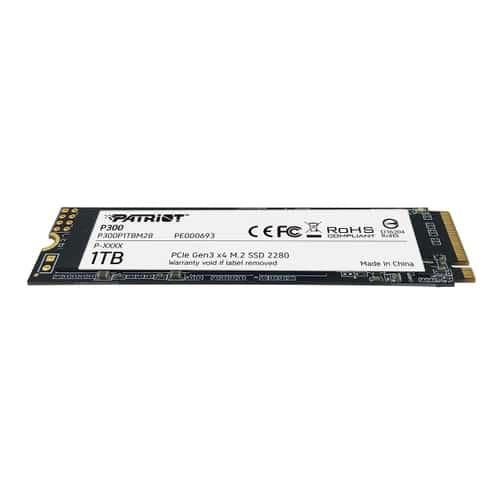

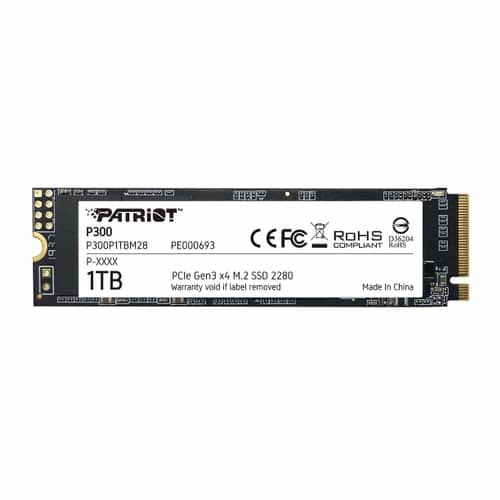

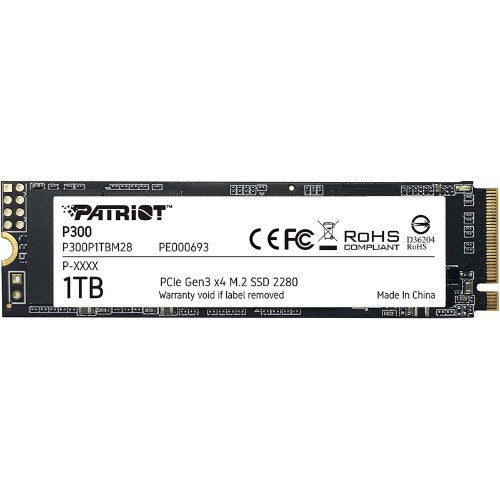

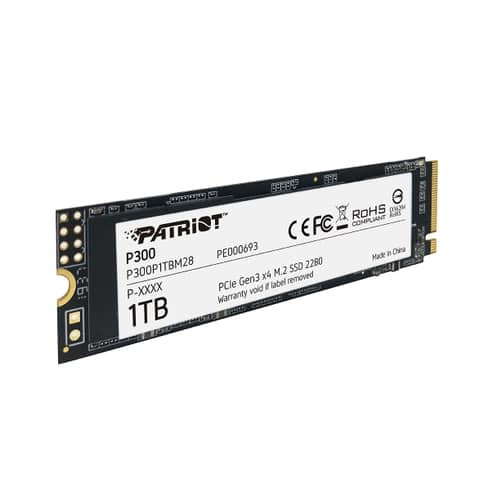

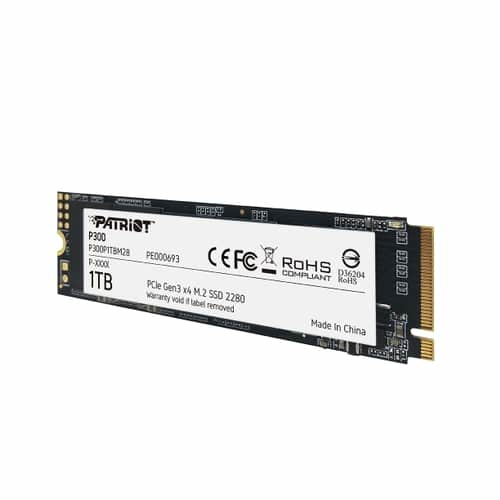

Description
1 TB, M.2 PCIe 3 x 4, NVMe 1.3, NANDXtend ECC
Key Features
- Built with the latest PCIe 3 x 4 controller
- 2280 m.2 PCIe NVMe Gen3 x 4 SSD
- NANDXtend ECC Technology
- HMB Technology
- Operating Temperature: 0~70°C
- TBW: 320TB
- O/S Supported: Windows® 7*/8*/8.1/10
Description
The P300 is Patriot’s next generation of mid-tier PCIe gen 3x4 NVMe SSD to hit the market, offering 25% higher transfer speeds and IOPs than standard PCIe 3x2 solutions. The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives.Specifications
| Hard drive | |
|---|---|
| PCI Express interface data lanes | x4 |
| SSD capacity | 1.02 TB |
| Memory type | 3D NAND |
| Performance | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Enterprise, Windows 10 Home, Windows 10 Pro, Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro, Windows 7, Windows 8, Yes |
| Interface | PCI Express 3.0 |
| Component for | PC/Laptop |
| NVMe | Yes |
| NVMe version | 1.3 |
| Sequential write speed (CDM) | 1650 MB/s |
| Sequential write speed (AS SSD) | 1650 MB/s |
| Sequential read speed (CDM) | 2100 MB/s |
| Sequential read speed (AS SSD) | 2100 MB/s |
| Sequential read speed (ATTO) | 2100 MB/s |
| Sequential write speed (ATTO) | 1650 MB/s |
| TBW rating | 480 |
| PCI Express interface data lanes | x4 |
| SSD capacity | 1.02 TB |
| S.M.A.R.T. support | Yes |
| Read speed | 2100 MB/s |
| TRIM support | Yes |
| Write speed | 1650 MB/s |
| ECC | Yes |
| Memory type | 3D NAND |
| Random write (4KB) | 260000 IOPS |
| Random read (4KB) | 290000 IOPS |
| Mean time between failures (MTBF) | 1500000 h |
| Data transmission | |
| Read speed | 2100 MB/s |
| Write speed | 1650 MB/s |
| Random write (4KB) | 260000 IOPS |
| Random read (4KB) | 290000 IOPS |
| Endurance | |
| Mean time between failures (MTBF) | 1500000 h |
| Features | |
| Interface | PCI Express 3.0 |
| Component for | PC/Laptop |
| NVMe | Yes |
| NVMe version | 1.3 |
| Sequential write speed (CDM) | 1650 MB/s |
| Sequential write speed (AS SSD) | 1650 MB/s |
| Sequential read speed (CDM) | 2100 MB/s |
| Sequential read speed (AS SSD) | 2100 MB/s |
| Sequential read speed (ATTO) | 2100 MB/s |
| Sequential write speed (ATTO) | 1650 MB/s |
| TBW rating | 480 |
| PCI Express interface data lanes | x4 |
| SSD capacity | 1.02 TB |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Enterprise, Windows 10 Home, Windows 10 Pro, Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro, Windows 7, Windows 8, Yes |
| S.M.A.R.T. support | Yes |
| Read speed | 2100 MB/s |
| TRIM support | Yes |
| Write speed | 1650 MB/s |
| ECC | Yes |
| Memory type | 3D NAND |
| Random write (4KB) | 260000 IOPS |
| Random read (4KB) | 290000 IOPS |
| Mean time between failures (MTBF) | 1500000 h |
| SSD form factor | M.2 |
| M.2 key ID | B+M |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (idle) | 0.37 W |
| Design | |
| Component for | PC/Laptop |
| SSD form factor | M.2 |
| Weight & dimensions | |
| Width | 22 mm |
| Weight | 9 g |
| Height | 3.8 mm |
| Depth | 80 mm |
| Package width | 100 mm |
| Package depth | 6.6 mm |
| Package height | 132 mm |
| Package weight | 20 g |
| Package type | Blister |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 6.6 mm |
| Package height | 132 mm |
| Cables included | No |
| Package weight | 20 g |
| Manual | No |
| Quick start guide | No |
| Package type | Blister |
| Screws included | No |
| Manual languages | English |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Enterprise, Windows 10 Home, Windows 10 Pro, Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro, Windows 7, Windows 8, Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Technical details | |
| Interface | PCI Express 3.0 |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| TRIM support | Yes |
| ECC | Yes |
| SSD form factor | M.2 |
| Warranty period | 5 year(s) |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Enterprise, Windows 10 Home, Windows 10 Pro, Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro, Windows 7, Windows 8, Yes |
| Other features | |
| Warranty period | 5 year(s) |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Packaging content | |
| Cables included | No |
| Manual | No |
| Quick start guide | No |
| Screws included | No |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
