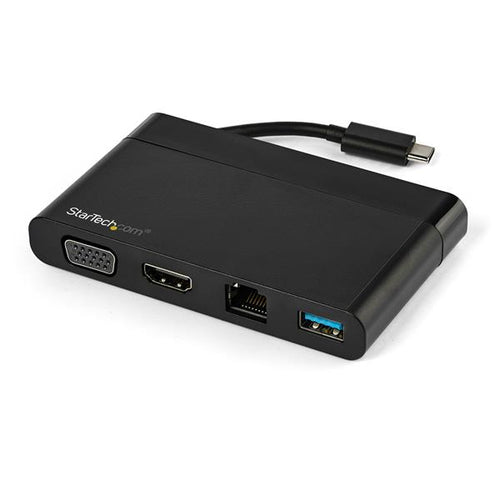

StarTech.com USB C Multiport Adapter with HDMI, VGA, Gigabit Ethernet & USB 3.0 - USB C to 4K HDMI or 1080p VGA Display Mini Dock Hub - USB Type-C Travel Docking Station for USB-C Laptops (DKT30CHVCM)

Key Features

• 4-IN-1 PORTABLE DOCK: USB C Multiport Adapter w/ 4K 30Hz HDMI 1.4 or 1080p VGA single display video output, 5Gbps USB-A port & Gigabit Ethernet for USB-C/Thunderbolt 3 laptops, tablets, or smartphones
• IDEAL FOR TRAVEL: The mini USB C travel dock is compact, lightweight, & portable, features attached hideaway cable providing easy cable management to prevent tangles in laptop bags, pouches or pockets
• WIDE DEVICE COMPATIBILITY: Compatible with USB-C tablets or smartphones, this USB 3.0 (USB 3.1 Gen 1) Type C multiport hub works with HP, Lenovo, Dell, MacBook, Chromebooks and Samsung Galaxy devices
• EASY SETUP & DEPLOYMENT: With automatic driver setup, this mobile USB-C multiport docking station supports all major operating systems; Windows, macOS, ChromeOS, & Android to ensure compatibility
• INDUSTRY-LEADING SUPPORT: StarTech.com offers a 3-year warranty and free lifetime professional technical support on this USB C multiport adapter so you can be confident in this USB Type C travel dock
• CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities

Description

Portable Docking Station | Mac, Windows® & Chrome OS™ | 4K | GbE | Hideaway Cable

Ideal for mobile workers, this USB-C multiport adapter with HDMI and VGA gives you flexible video output. It's like four adapters in one, with HDMI or VGA connections, a Gigabit Ethernet port and a USB 3.0 port, all through one connection to your laptop's USB-C port. Plus, it features a hideaway cable for better cable management and easier travel.

With easy plug-and-play installation on most operating systems, the USB-C adapter doesn't require additional drivers or software. It's the perfect accessory for MacBook Pro, Dell XPS, Chromebook or other USB-C laptops.

Connect a UHD 4K HDMI or VGA Monitor

The USB Type-C multiport adapter keeps you prepared for business travel. You can extend your laptop's display by connecting to a 4K HDMI (4096x2160 or 3840 x 2160p) or VGA (1920 x 1200p) monitor or projector, to make presentations or set up a workstation.

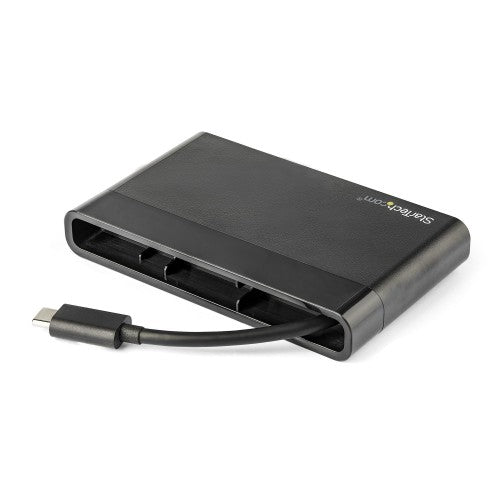

Convenient Cable Management

With multiple ports and an easily accessible hideaway cable, the USB-C all-in-one adapter makes an ideal travel dock, for easy connections on the go. Plus, the USB Type-C adapter is bus powered, so there's no need to carry around a separate power adapter.

Enhance Productivity

Connect a flash drive, mouse or other peripheral to your USB-C or Thunderbolt 3 laptop using the USB 3.0 Type-A port. The USB-C adapter adds wired network connectivity with the GbE port, making it ideal in areas without Wi-Fi.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

DKT30CHVCM is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB connector type	USB Type-C
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Microphone in	No
Connectivity technology	Wired
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Maximum analog resolution	1920 x 1200 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Black
Card reader integrated	No
Data transfer rate	5 Gbit/s
Certification	CE, FCC, REACH
Housing material	Plastic
Technical details
Product colour	Black
Data transfer rate	5 Gbit/s
Cable length	0.085 m
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Products per master (outer) case	30 pc(s)
Master (outer) case width	330 mm
Master (outer) case length	358 mm
Master (outer) case height	310 mm
Storage
Card reader integrated	No
Power
Power source type	USB
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Weight	82 g
Width	62 mm
Depth	105 mm
Height	16 mm
Package weight	168 g
Package width	142 mm
Package depth	175 mm
Package height	30 mm
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Product colour	Black
Certification	CE, FCC, REACH
Packaging data
Package weight	168 g
Package width	142 mm
Package depth	175 mm
Package height	30 mm
Packaging content
Manual	Yes
Certificates
Certification	CE, FCC, REACH
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	330 mm
Master (outer) case length	358 mm
Master (outer) case height	310 mm
Harmonized System (HS) code	84733020
Other features
Chipset	Genesys Logic - GL3523, Realtek - RTL8153, Eton Technology - EJ899T, Parade Technologies - PS176, ITE - IT6516
Cable length	0.085 m
