£215.55
Spread the cost over 3, 6 or 12 months with orders over £50.
Free next working day delivery!
Description

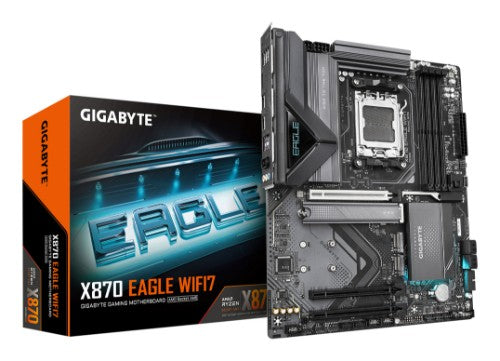

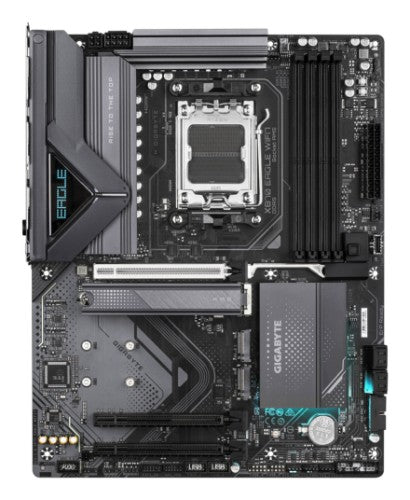

X870 EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 14+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4
Key Features
- AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5：4DIMMs with AMD EXPO Memory Module Support
- PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
- Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edgeSpecifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| mSATA ports quantity | 0 |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Maximum internal memory supported by processor | 256 GB |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 256 GB |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| DirectX version | 12.0 |

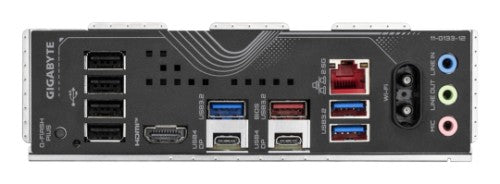

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| PS/2 ports quantity | 0 |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x4 (Gen 3.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 0 |
| PCI Express x16 (Gen 4.x) slots | 0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 0 |
| PCI Express x8 (Gen 4.x) slots | 0 |
| PCI Express x8 (Gen 5.x) slots | 0 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 25110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.94 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.94 kg |
| Weight | 1.74 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.94 kg |
| PCI Express x4 (Gen 3.x) slots | 0 |
| PCI Express x8 (Gen 3.x) slots | 0 |
| mSATA ports quantity | 0 |
| Weight | 1.74 kg |
| PCI Express x1 (Gen 4.x) slots | 0 |
