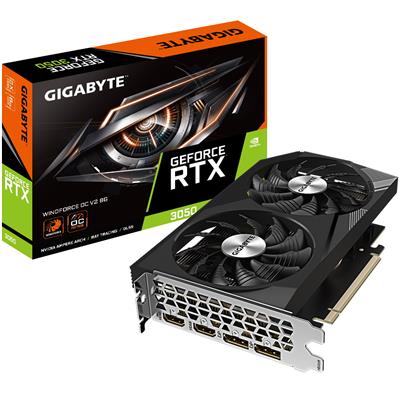

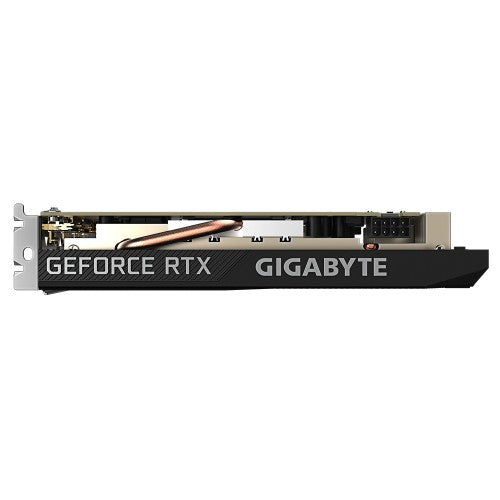

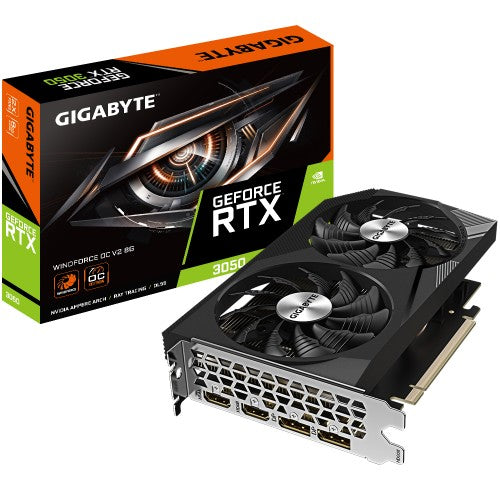

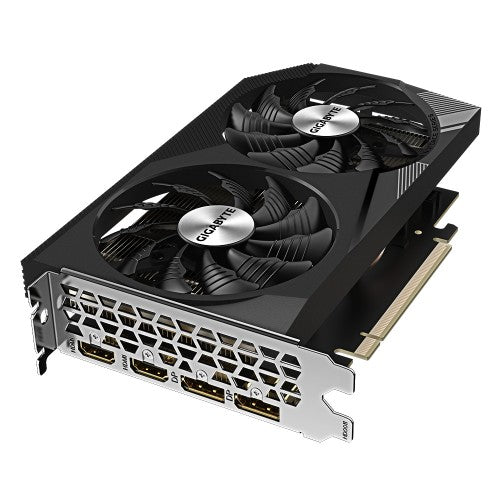

NVIDIA GeForce RTX 3050, 1792MHz, 8GB GDDR6, 128 bit, 14000MHz, PCI Express 4.0, 2 x HDMI (2.1), 2 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6

Description

KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3050
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE Cooling System
90mm unique blade fan

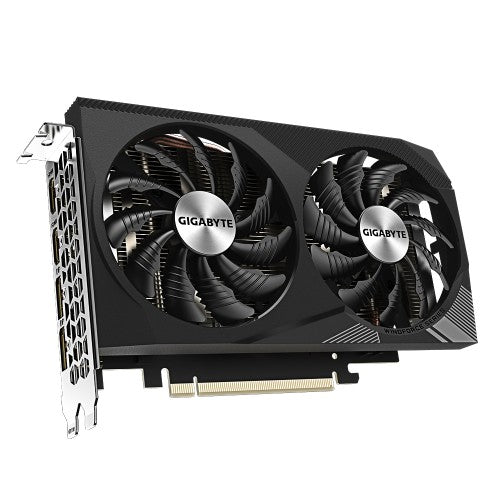

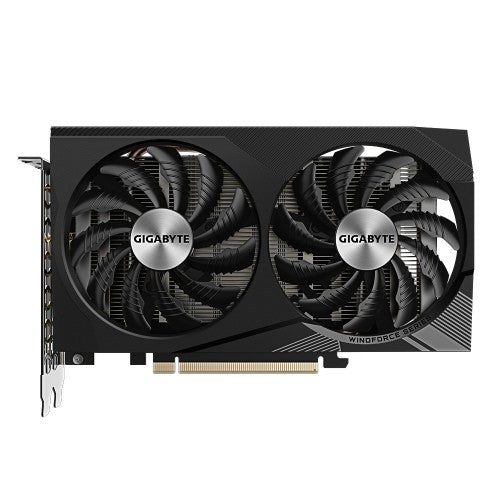

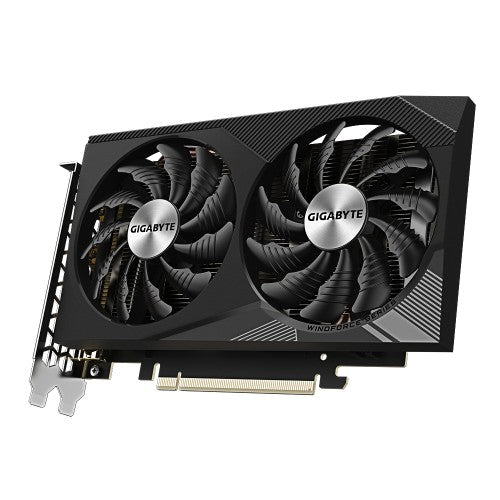

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ULTRA DURABLE
ULTRA COOLING

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS

Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specifications

Processor
Graphics processor family	NVIDIA
Processor frequency	1792 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	2560
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce RTX 3050
Memory
Discrete graphics card memory	8 GB
Memory clock speed	14000 MHz
Memory bus	128 bit
Graphics card memory type	GDDR6

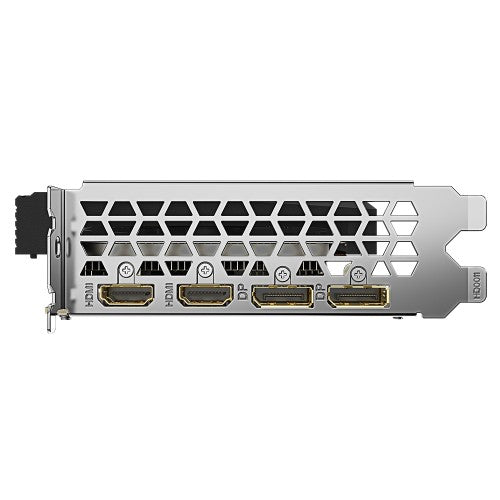

Ports & interfaces
HDMI version	2.1
HDMI ports quantity	2
DisplayPort version	1.4a
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	2
Interface type	PCI Express 4.0
Video
DirectX version	12 Ultimate
OpenGL version	4.6
HDMI version	2.1
Dual Link DVI	Yes
CUDA cores	2560
Performance
NVIDIA G-SYNC	Yes
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	Yes
TV tuner integrated	No
Design
Number of fans	2 fan(s)
Cooling type	Active
Product colour	Black, Silver
Cooling technology	GIGABYTE WINDFORCE 2X
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Power
Supplementary power connectors	1x 8-pin
Minimum system power supply	450 W
Technical details
Cooling type	Active
Product colour	Black, Silver
TV tuner integrated	No
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Minimum system power supply	450 W
Weight & dimensions
Height	120.6 mm
Depth	39 mm
Length	198.1 mm
Packaging data
Package type	Box
User guide	Yes
Packaging content
User guide	Yes
