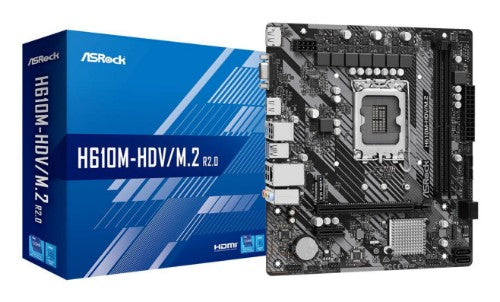

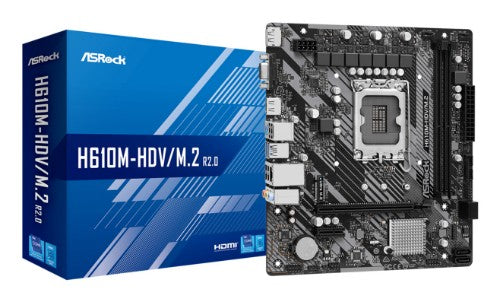

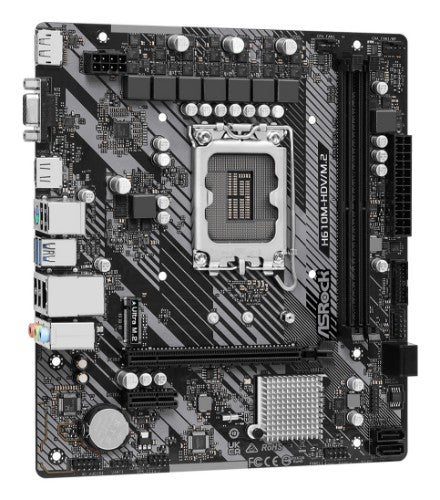

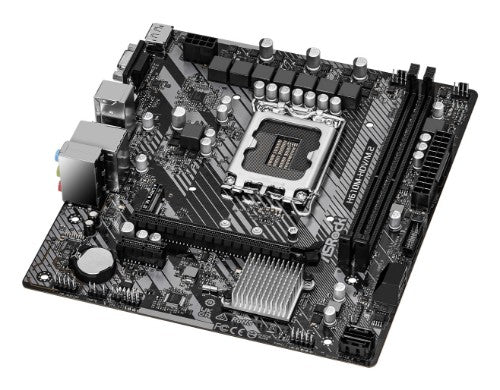

LGA1700, DDR4 3200MHz, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, HDMI, DisplayPort, D-Sub, 4 x SATA3, 4 x USB 3.2 Gen1, 6 x USB 2.0, Realtek Gigabit LAN

Key Features

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• 6+1+1 Phase Power Design
• Supports DDR4 3200MHz
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 1 Ultra M.2 (PCIe Gen3 x4)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN

Description

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Specifications

Internal I/O
Number of M.2 (M) slots	1
12V power connector	Yes
Supported storage drive interfaces	M.2
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Number of chassis fan connectors	1
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Supported processor sockets	LGA 1700
PC health monitoring	CPU, Fan, Voltage, Water cooling
HDMI version	2.1
Motherboard form factor	micro ATX
Component for	PC
Sustainability compliance	Yes
Sustainability certificates	ErP
Compliance certificates	CE, EuP, Federal Communications Commission (FCC)
Audio
Audio output channels	7.1 channels
Performance
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Supported processor sockets	LGA 1700
PC health monitoring	CPU, Fan, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets	LGA 1700
Processor socket	LGA 1700
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Maximum internal memory	64 GB
Unbuffered memory	Yes
Supported memory clock speed (max)	3200 MHz
ECC сompatibility	Non-ECC
Storage controllers
Supported storage drive interfaces	M.2
Graphics
Maximum resolution	7680 x 4320 pixels
HDCP	Yes
Graphics card family	Intel
Graphics card	Intel Iris Xe Graphics
Discrete graphics support	Yes

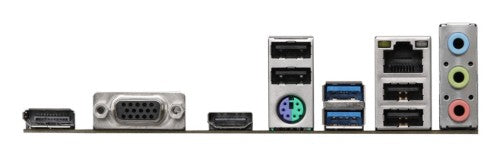

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPort version	1.4
USB connector type	USB Type-A
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Line-in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	No
Wake-on-LAN ready	Yes
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Supported processor sockets	LGA 1700
PC health monitoring	CPU, Fan, Voltage, Water cooling
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Product colour	Black, Grey, Silver
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	6.0
System Management BIOS (SMBIOS) version	2.7
Video
Maximum resolution	7680 x 4320 pixels
HDCP	Yes
Graphics card family	Intel
Graphics card	Intel Iris Xe Graphics
Discrete graphics support	Yes
Software
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Drivers included	Yes
Weight & dimensions
Width	220 mm
Depth	193 mm
Packaging content
Drivers included	Yes
Cables included	SATA
Screws included	Yes
