£198.31
Spread the cost over 3, 6 or 12 months with orders over £50.
Free next working day delivery!
Description
8 GB GDDR6, 18 Gbps, 128 bit, PCI-E 4.0, ATX, 550W

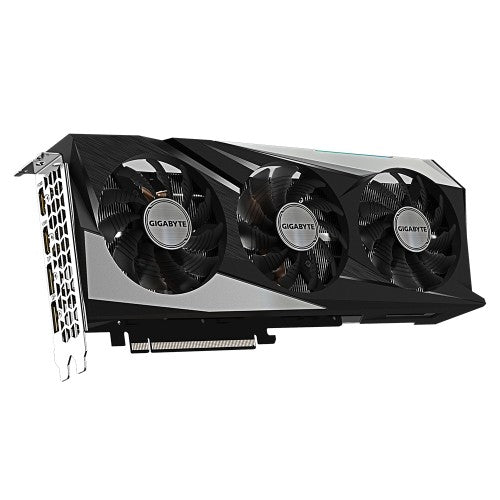

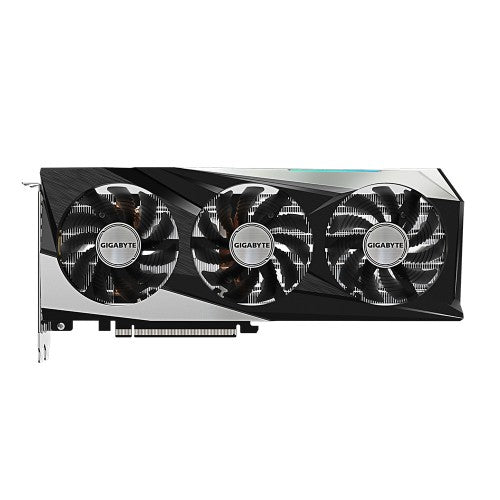

COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

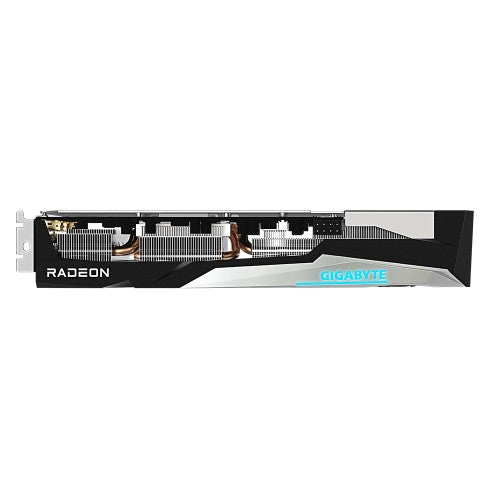

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag
Minimizes input lag so you can game like a champion.
AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.
AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.
AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
Key Features
- Powered by Radeon™ RX 7600
- Integrated with 8GB GDDR6 128-bit memory interface
- WINDFORCE cooling system
- RGB Fusion

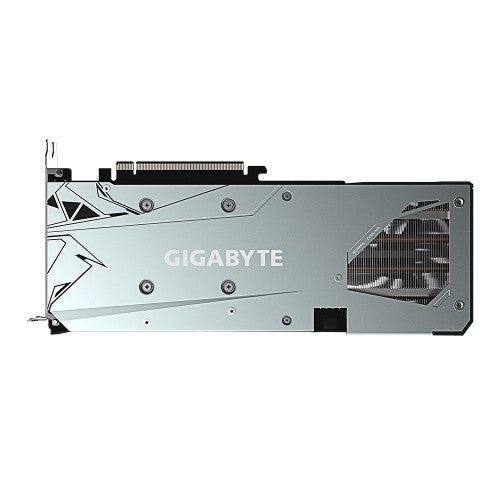

- Protection metal back plate
Description
WINDFORCECOOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
AMD Radeon™ Anti-Lag
Minimizes input lag so you can game like a champion.
AMD Radeon™ Boost
Delivers extra performance and responsiveness when you need it most.
AMD Radeon™ Image Sharpening
Improves in-game visuals with virtually no impact to performance.
AMD Radeon™ Super Resolution
In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.In-driver upscaler powered by FSR 1.0, elevates performance across thousands of games.
AMD Noise Suppression
Reduces background audio noise from your surrounding environment for clearer communication.
AMD Link
Connect your phone, tablet, TV, or Windows-based PC and play your games from almost anywhere in the world.
Specifications
| Processor | |
|---|---|
| Graphics processor family | AMD |
| Processor frequency | 2355 MHz |
| Processor boost clock speed | 2755 MHz |
| Stream processors | 2048 |
| Maximum displays per videocard | 4 |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 7600 |
| Memory | |
| Discrete graphics card memory | 8 GB |
| Memory bus | 128 bit |
| Graphics card memory type | GDDR6 |
| Ports & interfaces | |

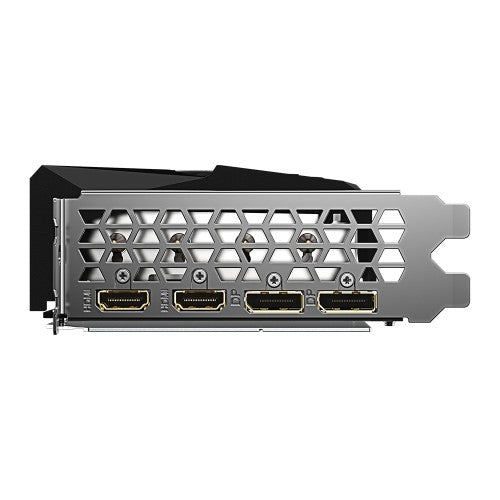

| HDMI version | 2.1a |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| HDMI ports quantity | 2 |
| DisplayPort version | 1.4a |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Interface type | PCI Express 4.0 |
| USB Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Video | |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDMI version | 2.1a |
| Dual Link DVI | No |
| Performance | |
| AMD FreeSync | Yes |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| TV tuner integrated | No |
| Design | |
| Number of fans | 3 fan(s) |
| Illumination colour | Multi |
| Illumination | Yes |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
| Bracket height | Full-Height (FH) |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power | |
| Supplementary power connectors | 1x 8-pin |
| Minimum system power supply | 550 W |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black |
| TV tuner integrated | No |
| System requirements | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Minimum system power supply | 550 W |
| Weight & dimensions | |
| Height | 115 mm |
| Depth | 50 mm |
| Length | 287 mm |
| Packaging data | |
| Package type | Box |
| User guide | Yes |
| Packaging content | |
| User guide | Yes |
